The Heart of it All
The space covered by the Jumbrella outSide ranges from 7 m2 through 16 m2. As a cantilever parasol it achieves its visual lightness through the lateral pole. This makes the membrane provide free shaded space without any obstacles. The technical sturdiness for stabilization steps to the side and thus into the background. The additional equipment extends the functional design with even more comfort and coziness.
- 6 different model sizes from 7 m2 to 16 m2

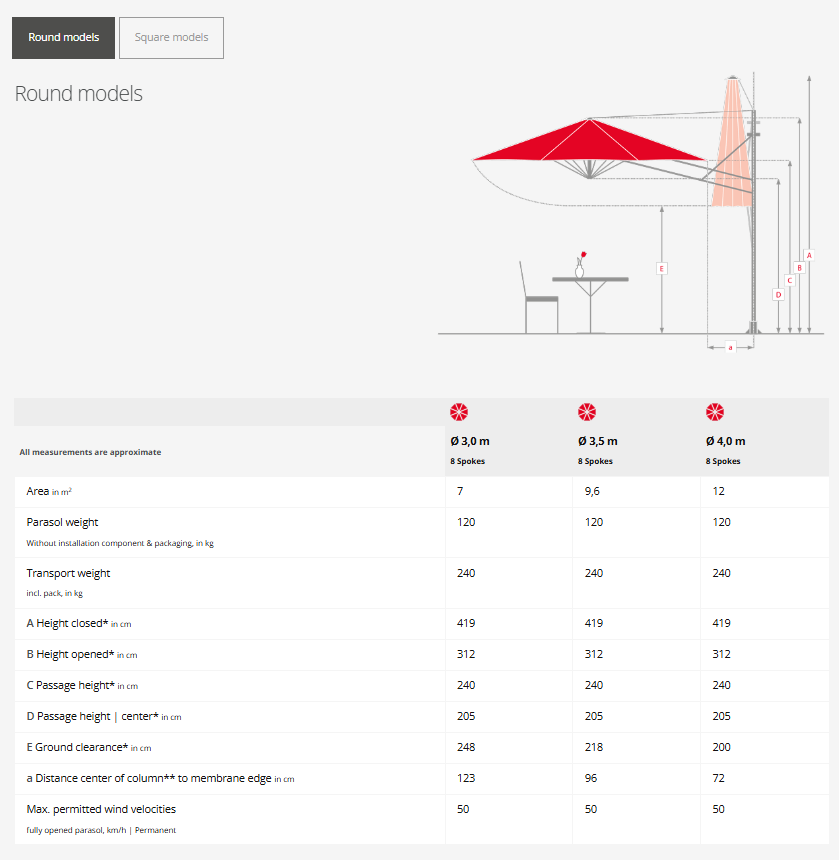

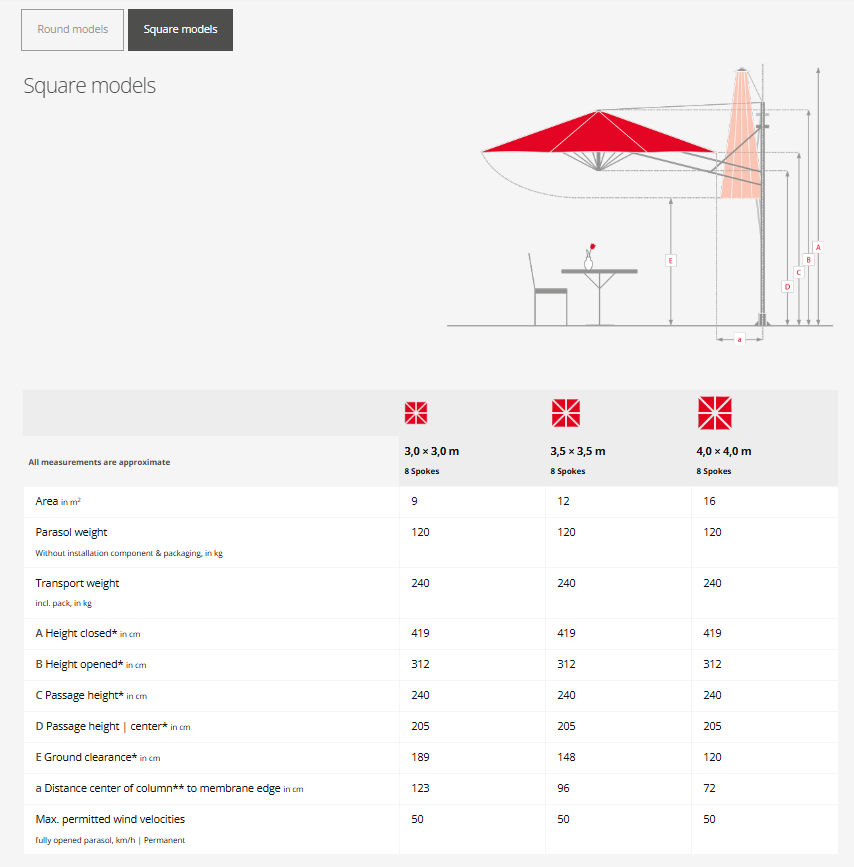

- Round and square models
- Great variety of additional features e.g. textile gutters, side panels, lighting with LED, heating, extra protection with the V4A | Maritime Edition
- Maintenance-free servo mechanism for trouble-free opening and closing
- 2 lockable handles with spring buckles for optimal fabric tension
- Standard frame in traffic white | RAL 9016 or in anthracite grey | RAL 7016, textured matte finish
- Optional custom design of frame finish (color, exclusive wood look | Golden Oak)

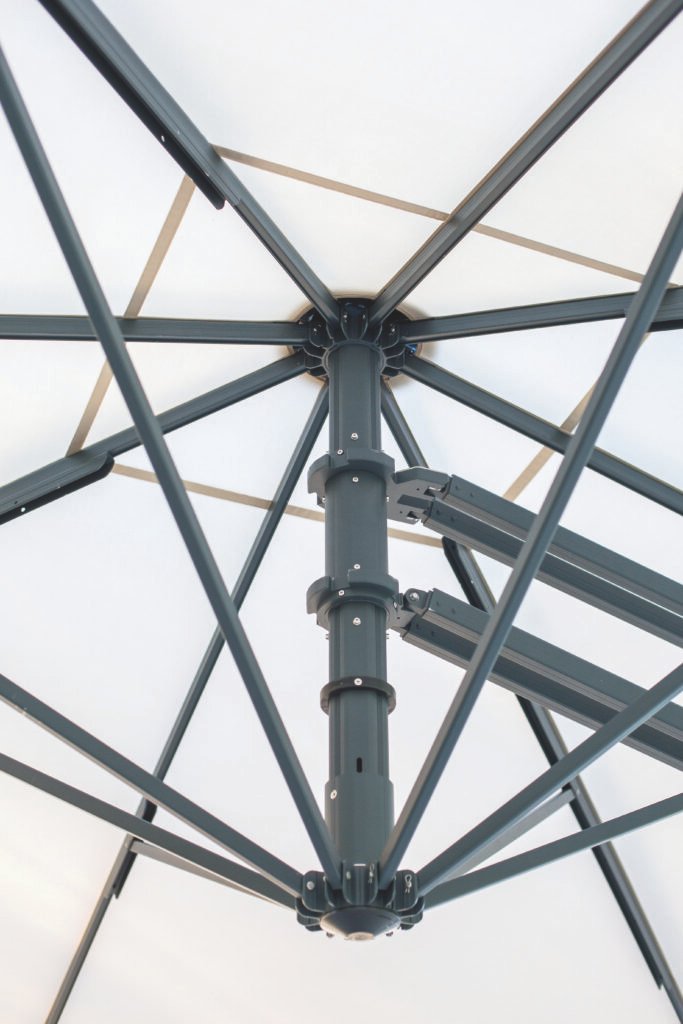

- Perfect, lasting tension as the textile membrane is integrated into the spoke
- Additional, stabilizing support spokes
- Membrane in three different high-quality fabrics; uni-colored and striped
- Large, contemporary selection of colors
- Excellent UV-protection UPF 50+
- Absolutely waterproof
- Numerous possibilities for printing on the textile membranes
- Creates free space for individual seating arrangements
- Short delivery times, fast replacement, exceptionally long spare parts supply
- Newest generation of infrared radiators that can remain in the closed parasol
- Integrated theft prevention
- Up to 111-months wind warranty up to wind force 50 km/h
Textile Membranes
No matter your choice of fabric, the resulting textile membranes combine all the attributes of a durable and sustainable product. These include next to the high-quality appearance numerous technical functions.
Brand Name: betex® 05 | Fabric exclusively crafted for Bahama
100% polyester fabric with top transparent coating
Grammage of approx. 200 g/m2
Excellent UV-protection UPF 50+ protects against UV radiation (exception: snow 9577)
High degree of fabric lightfastness (i.e. fading) (DIN EN ISO 105-B02 Class ≥ 6–7)
High waterproofness, pressure resistance (DIN EN 20811, ISO 811 | Water column ≥ 100 mbar, 1.000 mm)
Low moisture absorption, dries quickly
High temperature resistance (DIN 53361 from -30°/+90°C)
Excellent friction resistance (DIN EN ISO 105-x12 | Class ≥ 4–5)
High tear resistance due to high thread count
Durable, tailor-made and dimensionally stable with perfect membrane tension
Sustainable and environmentally friendly fabrics with the OEKO-TEX 100 Standard, Class 1
Exchangeable and washable one-piece membranes
25 contemporary colors (custom colors upon request)
Printable with the most modern printing process
Brand Name: Precontraint 302
PVC coated Polyester 550 Dtex. SERGE FERRARI PRECONTRAINT® coating technology
Grammage of approx. 480 g/m2
Excellent UV-protection UPF 50+ protects against harmful UV radiation
High degree of fabric lightfastness (i.e. fading) (DIN EN ISO 105-B02 | Class ≥ 7–8)
Heat-sealed segments, 100% waterproof
High temperature resistance (DIN 53361 from -30°/+70°C)
Fire retardant (DIN 4102-B1)
Exceptional surface stability and tear resistance
Durable, robust, dirt-repellant and stable in all weather conditions
Own cleaning possibility due to increased dirt accumu- lation through leaves, tree sap, bird-droppings, car exhaust or dust
Recyclable
25 contemporary colors (custom colors upon request)
Printable with the most modern printing process
Brand Name: swela Sunvas uni-colored and striped | ZebraS
100% polyester fabric with dirt and water repelling impregnation
Grammage of approx. 310 g/m2
Excellent UV-protection UPF 50+ protects against harmful UV radiation
Highest degree of fabric lightfastness (i.e. fading) (DIN EN ISO 105-B02 | Class ≥ 7–8)*
High waterproofness, pressure resistance (EN 20811, ISO 811 | Water column ≥ 35 m bar, 350 mm)
Weather fastness (DIN EN ISO 105-B04 | Class ≥ 7–8)*
Excellent friction resistance (DIN EN ISO 105-x12 | Class ≥ 4–5)
High tear resistance
Distinctive surface feel
Not printable
Color Chart betex®05
Color Chart Procontraint 302
