Jumbrella Bahama
Installation Options

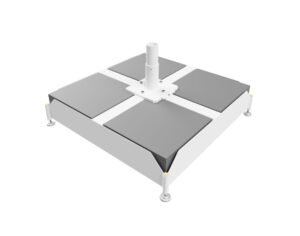

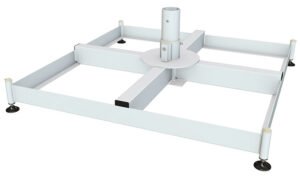

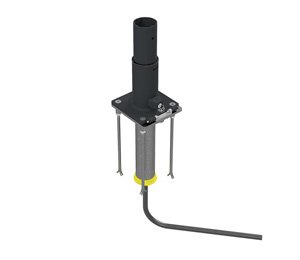

Options include mobile or permanent installation. Mobile setups offer greater flexibility in location and surface. In-ground installations require building measures, including above-ground and in-ground components set in concrete, which must be planned ahead.
A mobile or permanent installation option has to fulfill further requirements when the large-size parasol includes additional features like lighting, TV or heating: stability, invisible cable runs, protection against overheating, pre-assembly and much more. The interfaces between the actual large-size parasol and the additional features are precisely aligned to guarantee smooth operation. This results in each additional feature having its own technical requirements.
Umbrella Frame
The difference may not be immediately obvious, but Bahama’s large parasols feature an inner and outer pole that visually connect to form a single central pole. This design enhances sturdiness, providing better stability and improved safety.
Center pole with Outer and Inner pole
- Umbrella center pole extension, up to 50 cm are possible depending on model
- Umbrella center pole reduction (upon request)
Optional
- Easy and quick opening and closing due to the maintenance-free servo-mechanism
- Easy and efficient handling through gradual opening (servo-mechanism); depending on model 2- or 4-stages
- Tension latches with spring buckles for opening and closing instead of a crank
- Extra stability through extruded, internally strengthened and profiled aluminum center pole
- Pole diameter approx. 80 mm, wall thickness approx. 2.5 mm
- Impact and scratch resistant due to PES powder-coated center pole, post-baked
- Standard frame in traffic white | RAL 9016 or in anthracite grey | RAL 7016, textured matte finish
- Optional custom design for frames (color, exclusive wood look | Golden Oak) and membranes
- Cylindrical locks in the handles prevent unauthorized opening and closing

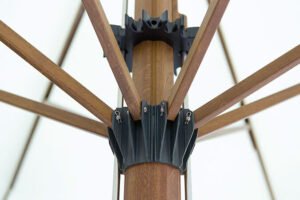

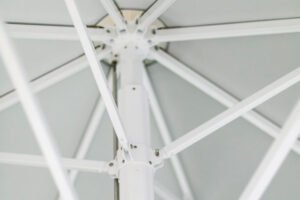

Spokes, Support Spokes, Bearings and Hinges
- The quality of a parasol can only be as good as its supporting and connecting parts.
- Welded rectangular aluminum profile using special alloy AI F30/32; no sharp edges
- Mounted using stainless steel axle bolts and spring pins
- No plastic parts used
- With hollow seam for spoke membrane integration Individually exchangeable spokes and support spokes
Textile Membranes
Regardless of your fabric choice, the textile membranes offer durability and sustainability, combined with a high-quality appearance and multiple technical features.
Brand Name: betex®05 | Fabric exclusively crafted for Bahama
- 100% polyester fabric with top transparent coating Grammage of approx. 200 g/m2
- Excellent UV-protection UPF 50+ protects against UV radiation (exception: snow 9577)
- High degree of fabric lightfastness (i.e. fading) (DIN EN ISO 105-B02 Class ≥ 6–7)
- High waterproofness, pressure resistance (DIN EN 20811, ISO 811 | Water column ≥ 100 mbar, 1.000 mm)
- Low moisture absorption, dries quickly
- High temperature resistance (DIN 53361 from -30°/+90°C)
- Excellent friction resistance (DIN EN ISO 105-x12 | Class ≥ 4–5)
- High tear resistance due to high thread count
- Durable, tailor-made and dimensionally stable with perfect membrane tension
- Sustainable and environmentally friendly fabrics with the OEKO-TEX 100 Standard, Class 1
- Exchangeable and washable one-piece membranes
- 28 contemporary colors (custom colors upon request)
- Printable with the most modern printing process
Brand Name: Precontraint 302
- 100% polyester fabric with dirt and water repelling impregnation
- Grammage of approx. 310 g/m2
- Excellent UV-protection UPF 50+ protects against UV radiation
- Highest degree of fabric lightfastness (i.e. fading) (DIN EN ISO 105-B02 | Class ≥ 7–8)*
- High waterproofness, pressure resistance (EN 20811, ISO 811 | Water column ≥ 35 m bar, 350 mm)
- Weather fastness (DIN EN ISO 105-B04 | Class ≥ 7–8)*
- Excellent friction resistance (DIN EN ISO 105-x12 | Class ≥ 4–5)
- High tear resistance Distinctive surface feel
- Not printable
*Exception ZebraS: Highest degree of fabric lightfastness (Class ≥ 4-5/grey) and weather fastness (Class ≥ 4-5/grey)
