Bahama Pure | Floor mounting
There is a choice of mobile and permanent Pure ground mounts. The mobile ones are characterized by greater flexibility in terms of location and conditions. Structural measures are necessary when installing stationary ground fixings. All floor fixings are HT hot-dip galvanized and powder-coated in traffic white | RAL 9016 or anthracite grey | RAL 7016, fine structure matt. For exceptions, see individual descriptions.
Mobile Floor Fastening

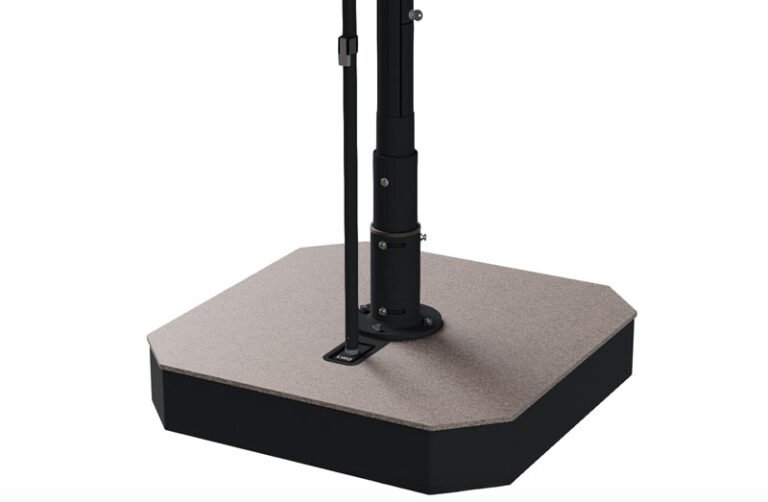

LIRO mobile stand “Maxi Plus”
Stand frame made entirely of stainless steel and powder-coated
Mechanical functional elements: Die-cast aluminium, anodized
Dimensions: 810 x 810 mm
Ball bearing mounted castors for easy relocation
Pliers-shaped locking of the stand feet prevent the stand from rolling away in the standing position
Weight : 240kg
The sturdy and robust cover plates of the stand enable a
Accessibility for operating the sunshade
Optional
Powder coating in white or anthracite

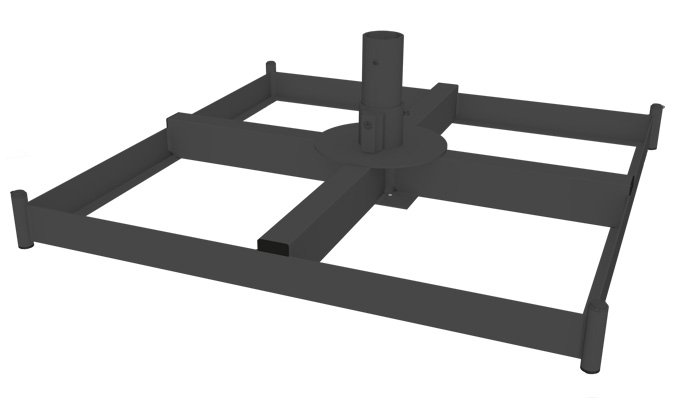

Steel cassette frame
Powder coating in anthratite gray ⎮ RAL 7016
8 standard walkway panels (500 x 500 x 50 mm) required for all sunshades
Dimensions of the steel frame: approx. 1130 × 1130 mm
Weight of the steel frame: approx. 28 kg for 8 panels
Steel cassette frame
4-way leveling
Steel plate stand with 4 or 8 steel plates | 2-ply
Flat design with an installation height of just 15 mm; no tripping hazard
HT hot-dip galvanized panels
Tiltable support tube, can be screwed on
Dimensions per panel: 490×490×15 mm (28 kg each) or 740×740×15 mm (65.2 kg each)
Optional
Powder-coated in traffic white (RAL 9016) or anthracite gray (RAL 7016, fine structure matt) and/or in the RAL color of the shade frame
Spacer from 89 mm e.g. for patio substructure; necessary for sunshades with electrical equipment. Dimensions do not include the steel plate height. Take into account winter cover plus 8 mm for floor level.
Mobile stand
Made of beautifully shaped exposed concrete, with beveled edges
For sunshades with and without electrical equipment
With screw-on tilt joint axle, powder-coated in the RAL color of the shade frame
Dimensions of the concrete stand: approx. 800 x 800 x 250 mm, weight approx. 310 kg (shade therefore 250 mm higher)
With wind guarantee (mobile) for sunshades up to the largest edge length or diameter of 4.5 m
